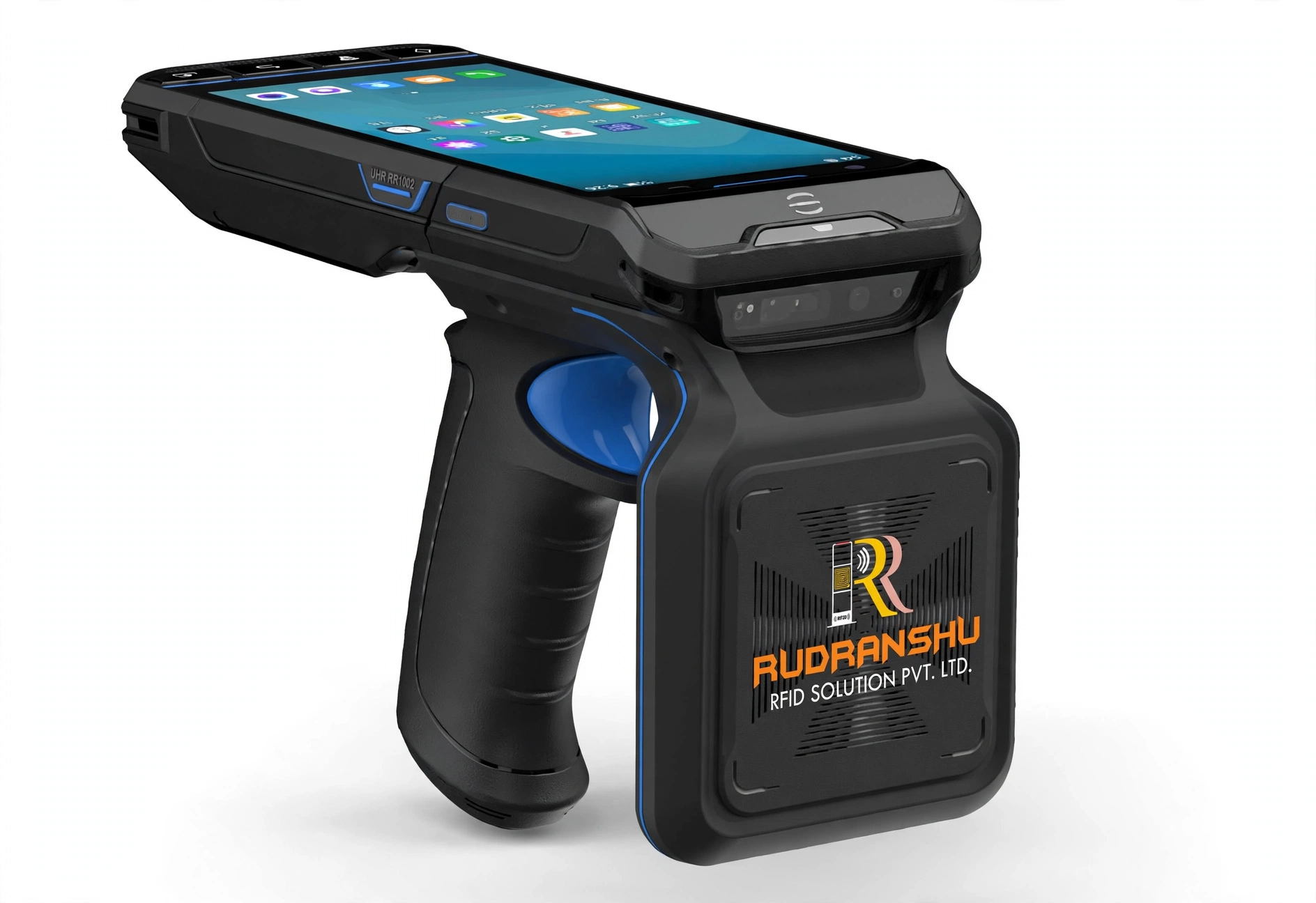

RFID UHF Handheld Reader UHRRR1002

The Rudranshu UHRRR1002 is an Android 13 handheld UHF RFID reader delivering >33dBm transmit power, 20m read range, and 500+ tags/second — even in dense-tag environments. With integrated 1D/2D barcode scanning, NFC, a 13MP camera, and a rugged 8000mAh design, it’s built for warehouse, retail, asset tracking, and industrial fi eld operations.Key Features
● High-power UHF module: >33dBm transmit power, <-86dBm receive sensitivity
● Long read range up to 20 meters with >500 tags/second multi-tag reading
● Android 13.0 with octa-core CPU, 4GB+64GB memory, expandable to 256GB
● Integrated 1D/2D barcode scanning (N6602-W2 engine), 13.56MHz NFC, 13MP camera
● 4000mAh removable battery with >350 hours standby time
● IP65-rated, rugged design withstands 1.2m drops and continuous tumble testing
Technical Specification :-
Performance
Octa-core                CPU MT6762 Octa-Core 64bit 2.0 GHz
RAM+ROM           4GB+64GB
Expandable             Micro SD (TF) Card expandable up to 256GB
Operating System     Android 10.0/Android 13.0
Reader Chip              3rd Generation UHF Reader Chip
Antenna Circular Polarization Antenna (4.65 dbi)
RF Air Int.     ISO 18000-6C/6B, EPC C1G2 GB/T 29768-2013 (OPTIONAL) GJB 7377.1-2011/7377.1-2018A
Features        Temp/Humidity Prot.sup. DRM, Simult. ID Tag Data filter, RSSI
Read Speed    >500 tags per second (circular polarization)
Con. EPC           Read & Write 0-20M (Dep on configuration)

Barcode Collection (Optional)
2D Scanning N6602-W2
Support for 1D UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, chinese 2 of 5, codabar
Barcode Type Postal Barcodes: USPS Planet, USPS Postnet, china post, korea post, Australian Postal, Japan postal, Dutch Postal, canadian Customs, etc
Supports For 2D PDF-417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR Code, Micro QR Code, Aztec, Maxicode, HanXin, etc.
Camera Rear 13MP high definition; Front 2MP Colour camera

Physical
Overall Size 179mm x 74.5mm x 150mm (Including Handle)
Overall Weight <750g (Depending on device configuration)
Display 5.5 Inch, Resolution 720×1440
Sensor Gravity Sensor, Light Sensor, Distance Sensor, Vibration Motor
Battery Capacity Polymer Battery 7.6V 4000mAh (Equivalent to 8000mAh) Rechargeable & Removable, Standby time >350 hours, Charge Time < 3hours
Communication Type     C 2.0 USB X 1 Supports OTG Functions
Expansion Card     NANO Sim Card x 1 TF Card x 1 (Optional PSAMx2) POGO Pin x 1

NFC
Operating    13.56MHz
Protocol Standard Supports ISO14443A/B,15693 Protocols etc
Read/Write Range 2cm~5cm

DATA
WLAN Dual Band   2.4GHz/5GHz, Supports IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocols
WWAN       2G: GSM (850/900/1800/1900MHz) 3G: WCDMA (850/900/1800/1900MHz) 4G: FDD: B1/B3/B4/B7/B8/B12/B20 TDD: B38/B39/B40/B41
Bluetooth Supports 5.0+BLE, transmission distance 5-10
GNSS Supports GPS, Galileo,Glonass, and Beidou

Wide Application

Library    Warehouse    File Tracking    Production Line
